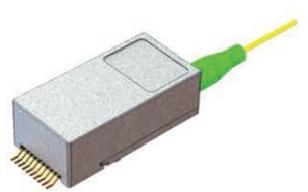

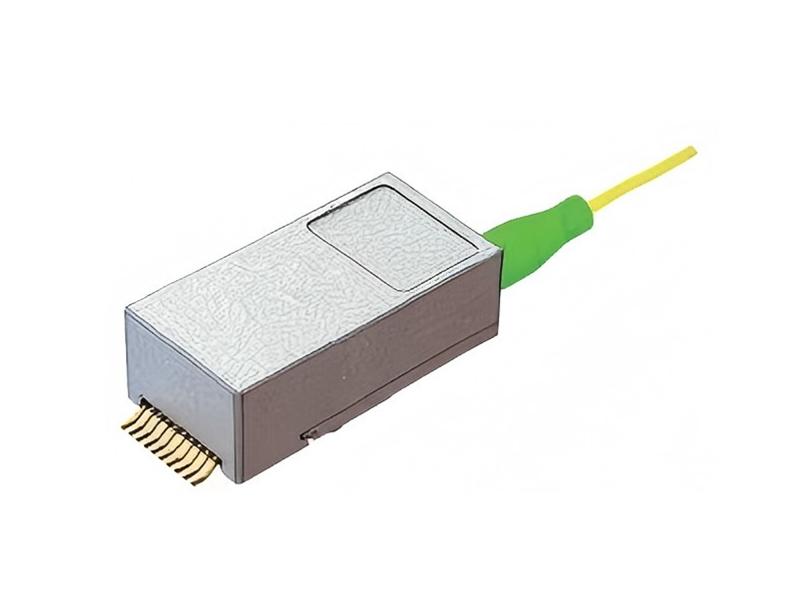

The 10PIN miniature single-channel optical module is primarily used in optical backplane transmission, digital radar arrays, Ethernet/SONET/SDH/FC, switches, and other digital fiber communication fields. It features a compact size, vibration resistance, and anti-interference capabilities. The module adopts an all-metal structure with a 10PIN pin header as the electrical interface. It integrates a single-channel optical transmitter and receiver, operating at wavelengths of 850nm/1310nm/1550nm. The operating temperature ranges from -40°C to +85°C, supporting single-channel transmission rates from 1.25 Gbps to 10.3125 Gbps.
10PIN Miniature Single-Channel Optical Modul
| Features
|  |
| Applications
|   |
Specifications
| Model | Channels | Wavelength | Rate | Tx Power | Rx Sensitivity | Package Structure | Operating Temperature |
| RM-03S10-31I | Single-mode Dual-Fiber Bi-Directional | 1310nm | 1.25Gbps | -5～2dBm | ≤-19dBm | Structure 1 | -40～+85℃ |
| RM-6GS10-31I | 1310nm | 6.25Gbps | -5～2dBm | ≤-14dBm | Structure 1 | ||
| RM-10GS10-31I | 1310nm | 10.3125Gbps | -5～2dBm | ≤-11dBm | Structure 1 | ||
| RM-10GS10-55I | 1310nm | 3.125Gbps | -5～2dBm | ≤-16dBm | Structure 1 | ||
| RM-6GC10-XXI | CWDM Dual-Fiber Bi-Directional | ITU-T G.694.2 | 6.25Gbps | -5～3dBm | ≤-14dBm | Structure 1 | |
| RM-10GC10-XXI | 10.3125Gbps | -5～3dBm | ≤-11dBm | Structure 1 | |||
| RM-03M05-85I | Multi-mode Dual-Fiber Bi-Directional | 850nm | 1.25Gbps | -5～1dBm | ≤-18dBm | Structure 2 | |
| RM-6GM03-85I | 850nm | 6.25Gbps | -5～1dBm | ≤-14dBm | Structure 2 | ||
| RM-10GM03-85I | 850nm | 10.3125Gbps | -5～1dBm | ≤-11dBm | Structure 2 | ||
| RM-10G04-85M5531S-I | Single/Multi-mode Hybrid Dual-Fiber Bi-Directional | 850nm T 1550/1330nm R | 10.3125Gbps T 2.5Gbps R | -5～2dBm | ≤-18dBm | Structure 2 | |
| RM-10G-31S85M-I | 1310nm T 850nm R | 10.3125Gbps | -5～3dBm | ≤-11dBm | Structure 2 | ||
| RM-10GS10-2733I | Single-mode Single-Fiber Bi-Directional | 1270nm T 1330nm R | 10.3125Gbps | -3～5dBm | ≤-11dBm | Structure 3 | |
| RM-10GS10-3327I | 1330nm T 1270nm R | 10.3125Gbps | -3～5dBm | ≤-11dBm | Structure 3 | ||
| RM-10GS10-5531I | 1550nm T 1310nm R | 10.3125Gbps | -3～5dBm | ≤-11dBm | Structure 3 | ||
| RM-10GS10-3155I | 1310nm T 1550nm R | 10.3125Gbps | -3～5dBm | ≤-11dBm | Structure 3 |

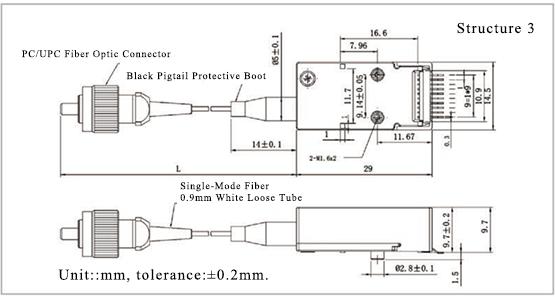

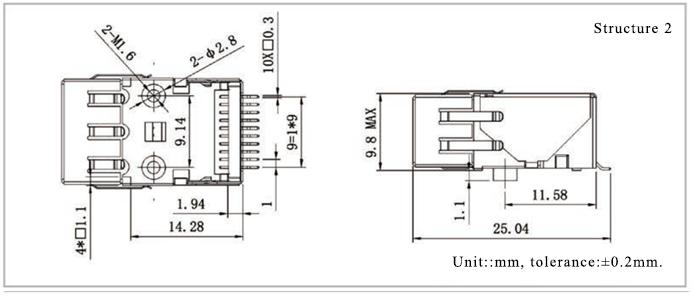

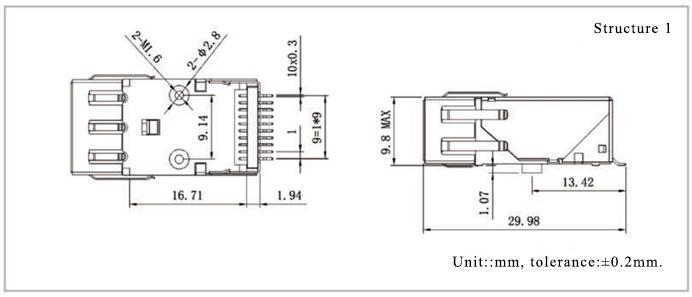

Dimensions
